React Rendering: Legacy vs Concurrent Mode

Overview: Two Different Worlds

React has two rendering modes that work completely differently:

• Legacy Mode: Synchronous, blocking (the old way)

• Concurrent Mode: Asynchronous, interruptible (the new way)

---

Legacy Mode (Synchronous Rendering)

The Complete Flow

1. Starting the Render

• You call ReactDOM.render() to display your component

• This is the "old-fashioned" synchronous method

2. Setting Up

• React calls legacyRenderSubtreeIntoContainer()

• It checks if there's already a root container

• Since it's the first render, React creates a new "fiber root" (React's internal tree structure)

3. Creating the Update

• React creates an update object for your changes

• This update gets added to a queue

• The update is scheduled on the fiber root

4. Processing the Work (Render Phase)

• Because it's legacy mode, React calls performSyncWorkOnRoot()

• This runs a synchronous work loop that processes each piece of work

• React goes through each fiber node (think of these as React's internal representation of your components)

• It compares old vs new props and builds a new fiber tree

• For "Hello World", this means creating fiber nodes for the h1 element

5. Committing Changes (DOM Update Phase)

• After the render phase, React calls commitRoot()

• This is where React actually updates the real DOM

• React looks at the finished fiber tree and finds what needs to change

• For new elements, it finds "Placement" effects (things that need to be added)

• React calls commitPlacement() to insert the new element

• Finally, it uses appendChild() to add your h1 to the actual webpage

Legacy Mode Visual Flow

User Action → ReactDOM.render() → Create Update → Schedule Work
                                                        ↓
DOM Update ← Commit Phase ← Render Phase ← performSyncWorkOnRoot
    ↓              ↓              ↓                    ↓
appendChild    commitRoot    Build Fiber Tree    Synchronous Loop
                                                        ↓
                                           BLOCKS MAIN THREAD

Key Problem: Everything happens in one blocking sequence - the main thread is frozen until complete.

---

Concurrent Mode (Asynchronous Rendering)

How Concurrent Mode Enables Non-Blocking Operations

1. Time Slicing

Concurrent mode breaks work into small chunks called "time slices":

Legacy Mode:
[████████████████████████] ← One big blocking task (16ms+)

Concurrent Mode:
[███][███][███][███][███] ← Multiple 5ms chunks with breaks
     ↑     ↑     ↑     ↑
   yield yield yield yield (let browser breathe)

2. Work Loop Differences

Legacy (Synchronous):

function workLoopSync() {
  while (workInProgress !== null) {
    performUnitOfWork(workInProgress); // Never stops
  }
}

Concurrent (Interruptible):

function workLoopConcurrent() {
  while (workInProgress !== null && !shouldYield()) {
    performUnitOfWork(workInProgress); // Can be interrupted
  }
}

3. The Scheduler's Role

The Scheduler decides when to pause work:

Browser Frame (16.67ms for 60fps):
┌─────────────────────────────────────┐
│ [React Work: 5ms] [Browser: 11ms]  │ ✅ Smooth
└─────────────────────────────────────┘

vs Legacy Mode:
┌─────────────────────────────────────┐
│ [React Work: 20ms] [Browser: 0ms]  │ ❌ Janky
└─────────────────────────────────────┘

How Asynchronous Mechanisms Improve Performance

1. Prevents Blocking the Main Thread

Timeline with Concurrent Mode:
0ms   5ms   10ms  15ms  20ms  25ms  30ms
├─────┼─────┼─────┼─────┼─────┼─────┼
│React│Anim │React│Anim │React│User │
│Work │     │Work │     │Work │Input│
└─────┴─────┴─────┴─────┴─────┴─────┘
      ↑     ↑     ↑     ↑     ↑
    Yield  Yield  Yield  Yield  Yield

2. Prioritized Updates

Not all updates are equal:

User Input (Urgent):     ████████████ (Immediate)
State Update (Normal):   ████████     (Normal)
Data Fetch (Low):        ████         (Low)

3. Improved Perceived Performance

• Responsive UI: Clicks and typing feel instant

• Smooth Animations: No frame dropping

• Better UX: App doesn't "freeze" during large updates

Scheduling and Priorities in Modern React

1. Lane-Based Priority System

React 18+ uses "lanes" to manage priority:

Lane Priority (Higher = More Urgent):

32-bit Binary Lanes:
SyncLane:           00000000000000000000000000000001 (Highest)
InputContinuousLane: 00000000000000000000000000000100
DefaultLane:        00000000000000000000000001000000
TransitionLane:     00000000000000000000010000000000
IdleLane:           01000000000000000000000000000000 (Lowest)

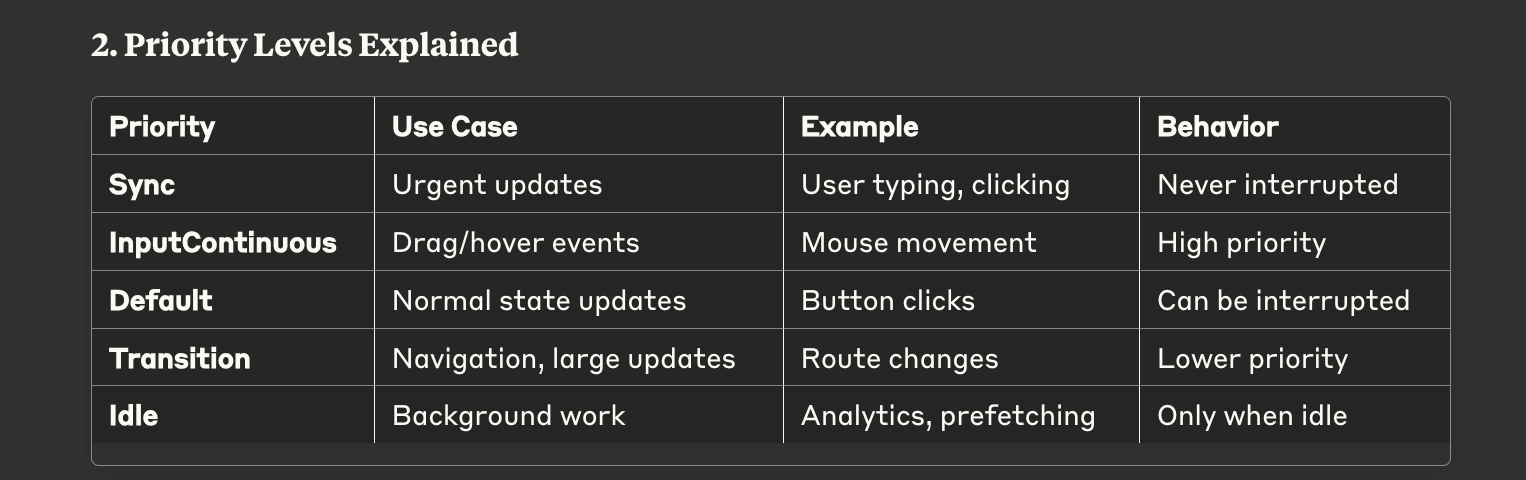

2. Priority Levels Explained

3. Scheduling Algorithm Visual

Scheduler Decision Tree:

New Update Arrives
        ↓
    What Priority?
   ┌─────┼─────┐
Urgent   Normal   Low
   ↓       ↓      ↓
Interrupt  Queue  Queue
Current    and    and
Work    Schedule  Wait
   ↓       ↓      ↓
Execute  Execute  Execute
Immediately  Soon  When Idle

4. Real-World Example

// Different priorities in action:

// 1. Urgent: User typing (Sync Priority)
onChange={(e) => setInput(e.target.value)}

// 2. Normal: Button click (Default Priority)
onClick={() => setCount(count + 1)}

// 3. Low: Expensive calculation (Transition Priority)
startTransition(() => {
  setFilteredData(expensiveFilter(data))
})

Concurrent Mode Flow Diagram

User Action → createRoot() → scheduleUpdateOnFiber()
                                       ↓
                            Scheduler Assigns Priority
                                       ↓
                           ┌───────────┼───────────┐
                      High Priority  Normal   Low Priority
                           ↓          ↓           ↓
                    ensureRootIsScheduled()      Queue for Later
                           ↓
                    performConcurrentWorkOnRoot()
                           ↓
               ┌───────────┼───────────┐
        Render Phase              Commit Phase
               ↓                       ↓
    workLoopConcurrent()        commitRoot()
    (Can be interrupted)        (Never interrupted)
               ↓                       ↓
          shouldYield()?           Update DOM
               ↓                       ↓
    ┌─────────┼─────────┐         Complete
   Yes       No
    ↓         ↓
  Pause    Continue
 & Resume   Working

---

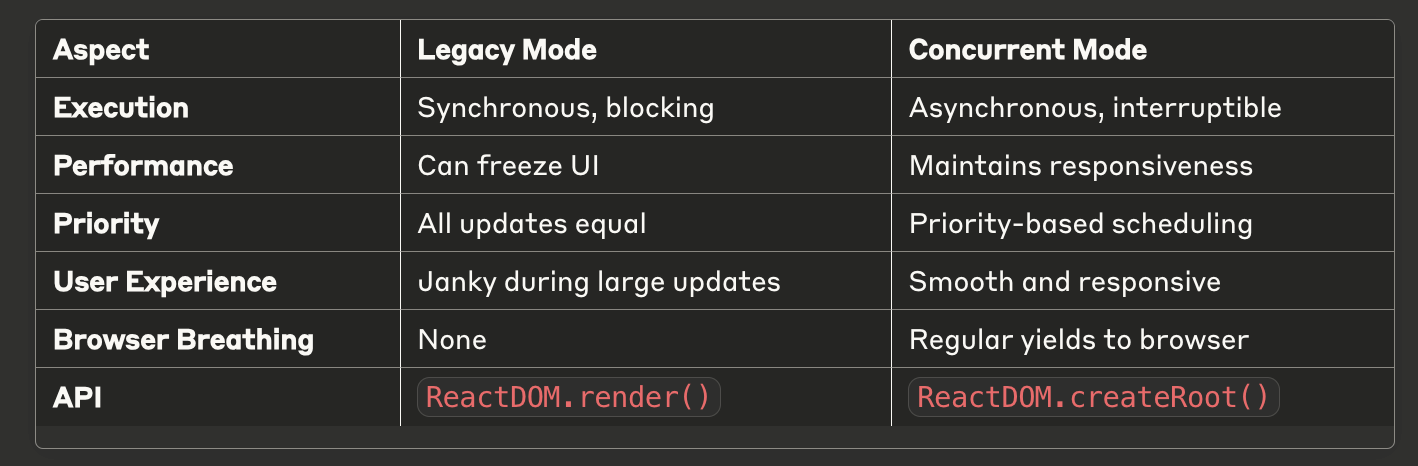

Key Differences Summary

Why This Matters

Legacy Mode Problems:

• Large component trees block the main thread

• Animations stutter during updates

• User input feels unresponsive

• "Frozen" app during heavy renders

Concurrent Mode Solutions:

• Work is broken into small, interruptible chunks

• High-priority updates (user input) interrupt low-priority work

• Browser gets regular opportunities to handle other tasks

• App feels responsive even during heavy operations

The shift from Legacy to Concurrent Mode represents React's evolution from a purely synchronous rendering system to a sophisticated, priority-aware scheduler that works with the browser's event loop rather than against it.
